Metal Paneling Systems

Steelsmith metal paneling systems are versatile, able to meet architectural specifications and design requirements for industrial, commercial and residential applications. Panels for each system are available in 22, 24 and 26 gauge Galvalume steel. Galvalume is a high quality cold-rolled sheet steel with a corrosion resistant metallic coating of aluminum and zinc.

All Steelsmith panels are produced in long-life fluroropolymer finishes. Your Steelsmith team can ensure consideration of all of your special design needs and specifications, and can offer and provide any panel type needed for your specific project.

Wall Panel Systems

Standard wall panel systems shown. Steelsmith carries many more profiles.
Contact a Steelsmith Estimator for details.

Standard PBR Panel

Standard PBR

The Steelsmith purlin bearing roof panels provide a strong, attractive wall or roof panel. This panel is ideal for commercial, community and industrial applications.

R Panel

R Panel

The Steelsmith "R" panel offers a rigid surface designed to compress up to 4" of insulation without causing unsightly bulges at the girt.

A Panel

A Panel

The Steelsmith "A" panel can be used for wall application and features pencil ribs, providing improved aesthetics to the building design.

Concealed Fastener Panel

Concealed Fastener Panel

The Steelsmith concealed fastener wall panel combines an elegant design with the toughness of metal. One leg of the panel is attached to the structural using a concealed clip and the other leg snaps securely into the adjoining panel to lock them into position.

Roof Panel Systems

Standard roof panel systems shown. Steelsmith carries many more profiles.
Contact a Steelsmith Estimator for details.

Standard PBR Panel

Standard PBR

The Steelsmith purlin bearing roof panels provide a strong, attractive wall or roof panel. This panel is ideal for commercial, community and industrial applications.

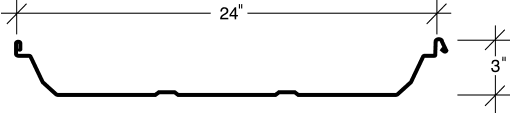

Trapezoidal Standing Seam Panel

Trapezoidal Standing Seam

The Steelsmith raised seam metal roof is designed to "float" to accommodate thermal expansion and contraction. This is accomplished with concealed siding clips which allow for up to 3" of expansion and contraction. The panel sidelap has factory applied mastic and can be completely erected without the use of electric seaming machines.

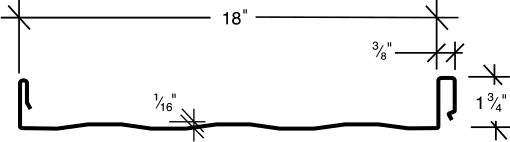

Vertical Rib Standing Seam Panel

Vertical Rib Standing Seam

This Steelsmith paneling system is perfect for architectural requirements in today's marketplace. This weathertight system is an ideal solution for buildings with hips and valleys.
